Installation Overview
The images that follow show the order in which to make connections and settings that are typical to the iHXA4/HXA4. If a custom interconnect drawing was supplied with your system, that drawing is on your Storage Device and shows as a line item on your Sales Order in the Integration section.

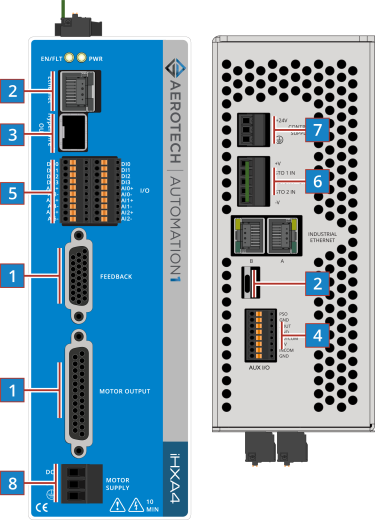

Figure: Installation Connection Overview for the iHXA4
| 1 |
Connect the hexapod motor power to the Motor Output connector. |
|
|
Connect the hexapod feedback to the Feedback connector. |
||
| 2 |
Connect the PC to the USB or Ethernet port. |
N/A |
| 3 |
Connect the next drive in the system to the HyperWire Out port. |
|
| 4 |
Connect Auxiliary I/O (PSO/AOUT/DIO COM). |
|
| 5 | Connect Digital and Analog I/O. | I/O A and B Connectors |
| 6 |
Connect the Safe Torque Off (STO). |
|
| 7 |
Connect the power supply to the Control Supply connector. |
|
| 8 |
Connect the motor power to the Motor Supply connector. |

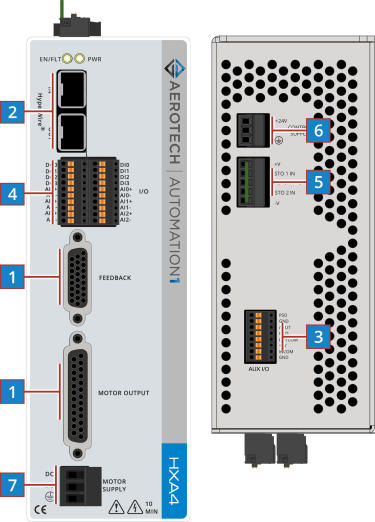

Figure: Installation Connection Overview for the HXA4
| 1 |
Connect the hexapod motor power to the Motor Output connector. |
|
|
Connect the hexapod feedback to the Feedback connector. |
||
| 2 |
Connect a PC or drive-based controller HyperWire port to the HyperWire In port. |
|
| 3 |
Connect Auxiliary I/O (PSO/AOUT/DIO COM). |
|
| 4 | Connect Digital and Analog I/O. | I/O A and B Connectors |
| 5 |
Connect the Safe Torque Off (STO). |
|
| 6 |
Connect the power supply to the Control Supply connector. |
|
| 7 |
Connect the motor power to the Motor Supply connector. |
