Fuse Specifications

WARNING: Replace fuses only with the same type and value.

Table 5-4:     Control Board Fuse Specifications

Fuse Description Size

SCCR(1)

Aerotech

P/N

Third Party

P/N
F100(2) Control Power at Line Input (L) 2 A S.B. 35 A EIF01044 Littelfuse 0877002.MXEP
F101 -SX1 (External Shunt) Option 8 A S.B. 1500 A EIF01022 Littelfuse 0215008.HXP

F102

Motor Bus Supply at AC1
(-10 Peak Current Option)

5 A S.B.

 1500 A

EIF01023

Littelfuse 215005.HXP

Motor Bus Supply at AC1
(-20/-30 Peak Current Option)

10 A S.B.

EIF01020

Littelfuse 0215010.HXP

(1) Short circuit current rating

(2) F100 is soldered into the PCB and is not user replaceable.

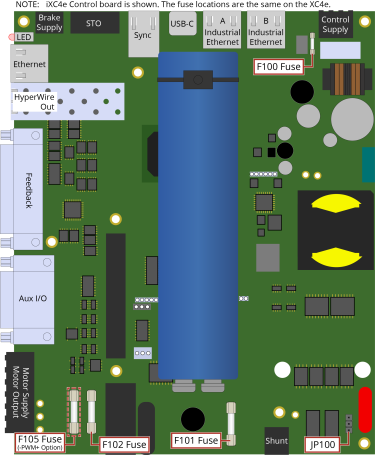

Figure 5-1:     Fuse Locations on the iXC4e Control Board
