Mechanical Specifications
Mounting and Cooling
The drive must be installed in an enclosed control cabinet suitable for installation of power equipment. A minimum enclosure rating of IP54 is required to comply with safety standards. Make sure that there is sufficient clearance surrounding the drive for free airflow and for the routing of cables and connections. Consideration for items such as line reactors, line filters, and motor chokes or inductance should be made during the initial cabinet design phase.
IMPORTANT: The amount of airflow required to keep the drive temperature within a sufficient range is dependent on the operating conditions. You could be required to supply additional airflow to the drive.
Table 1-4: Mounting Specifications
|
|
|
|
|---|---|---|
| Customer-Supplied Enclosure | IP54 Compliant | |
|
2.4 kg |
||
| Mounting Hardware | M4 [#8] screws (four locations, not included) | |
| Mounting Orientation | Vertical (typical) | |

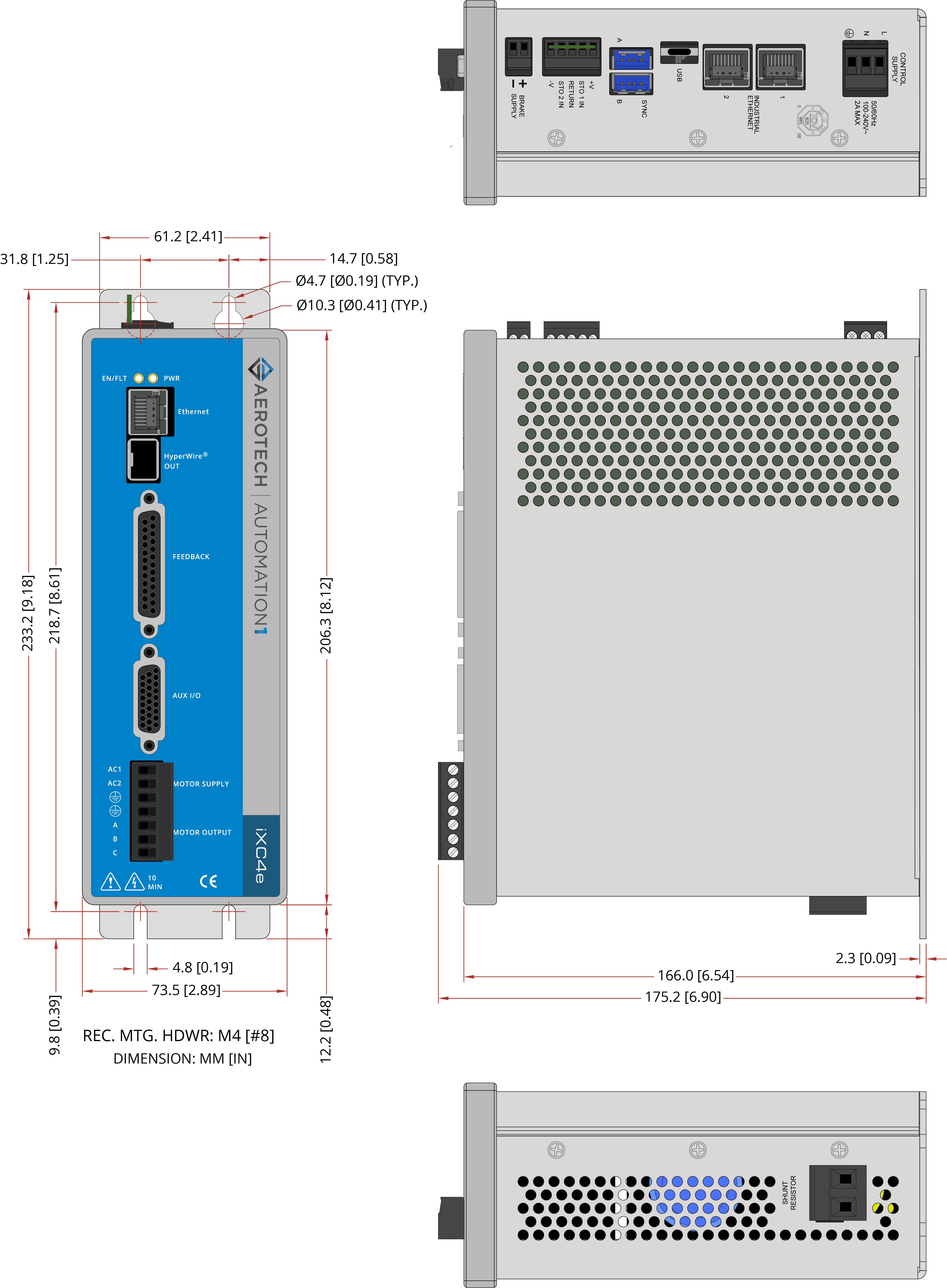

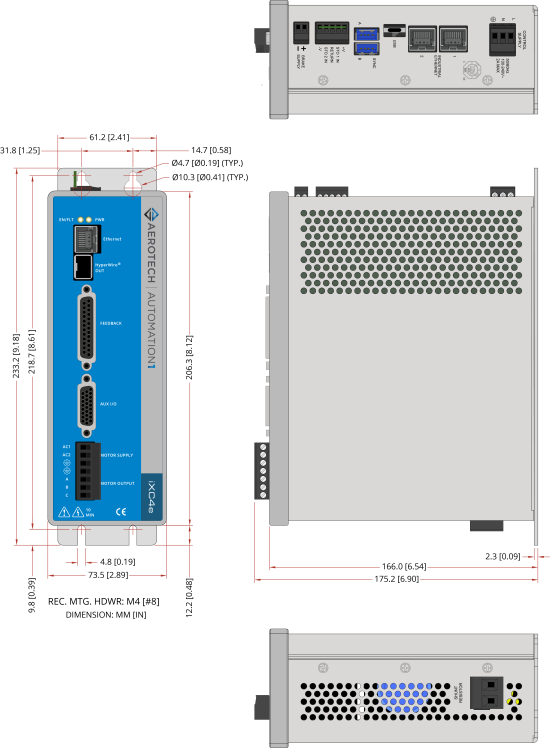

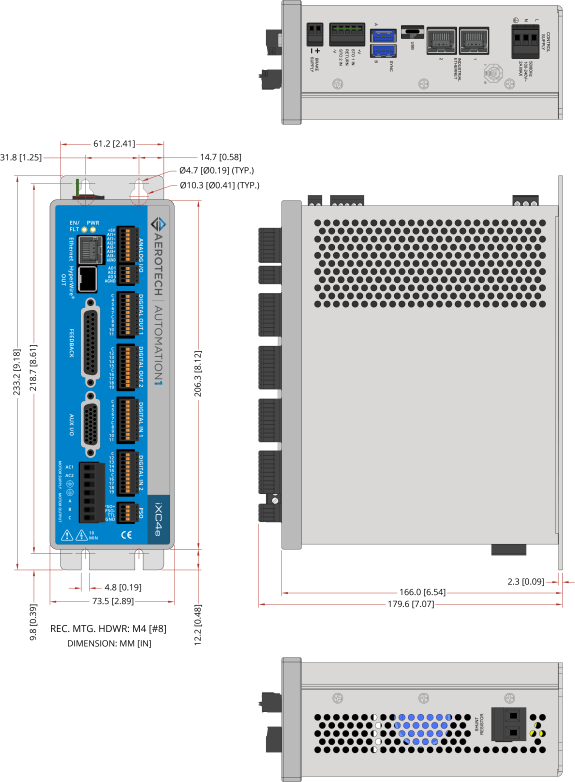

| Dimensions | Refer to Dimensions | |
| Minimum Clearance | Airflow | ~25 mm |
| Connectors | ~100 mm | |
| Operating Temperature | Refer to Environmental Specifications | |
| Drive IP Rating | IP20 | |
| Mounting Panel Thickness (Recommended) | 2.5 - 3.5 mm (.10 - .125 in) | |
| UL Enclosure Type Rating of Drive | Open Type | |
