Digital Outputs [-EB1]

Optically-isolated solid-state relays drive the digital outputs. You can connect the digital outputs in current sourcing or current sinking mode but you must connect all four outputs in a port in the same configuration. Refer to Digital Outputs Connected in Current Sourcing Mode [-EB1] and Digital Outputs Connected in Current Sinking Mode [-EB1].

The digital outputs are not designed for high-voltage isolation applications and they should only be used with ground-referenced circuits.

You must install suppression diodes on digital outputs that drive relays or other inductive devices. To see an example of a current sourcing output that has diode suppression, refer to Digital Outputs Connected in Current Sourcing Mode [-EB1]. To see an example of a current sinking output that has diode suppression, refer to Digital Outputs Connected in Current Sinking Mode [-EB1].

The digital outputs have overload protection. They will resume normal operation when the overload is removed.

Table 3-15:     Digital Output Specifications [-EB1]

Digital Output Specifications

Value

Maximum Voltage

24 V (26 V Maximum)

Maximum Sink/Source Current

250 mA/output

Output Saturation Voltage

0.9 V at maximum current

Output Resistance

3.7 Ω

Rise / Fall Time

250 µs (2K pull up to 24V)

Reset State

Output Off (High Impedance State)

Table 3-16:     Digital Output Connector Pinout [-EB1]

Pin#

Description

In/Out/Bi

Connector

1

Output Common for Outputs 0-3

Output

2

Output 0 (Optically-Isolated)

Output

3

Output 1 (Optically-Isolated)

Output

4

Output 2 (Optically-Isolated)

Output

5

Output 3 (Optically-Isolated)

Output

6

Output Common for Outputs 4-7

Output

7

Output 4 (Optically-Isolated)

Output

8

Output 5 (Optically-Isolated)

Output

9

Output 6 (Optically-Isolated)

Output

10

Output 7 (Optically-Isolated)

Output

Table 3-17:     Digital Output Mating Connector Ratings [-EB1]

Specification Description
Type 10-Pin Terminal Block
Part Numbers Aerotech: ECK02395
Phoenix: 1700841

Conductor Cross Section

Solid or stranded 20...26 AWG (0.14...0.5 mm2)
Stranded, with ferrule, without plastic sleeve 20...24 AWG (0.25...0.5 mm2)
Conductor Insulation Strip Length 8 mm (5/16 in)

(1) Refer to the manufacturer website for additional information.

Figure 3-11:     Digital Outputs Schematic [-EB1]

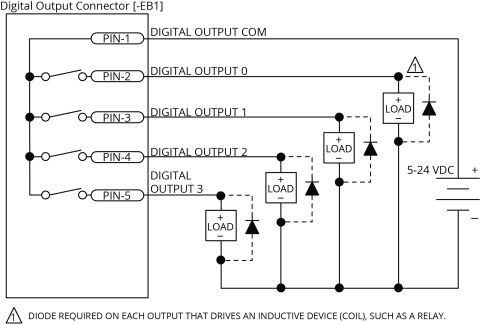

Figure 3-12:     Digital Outputs Connected in Current Sourcing Mode [-EB1]



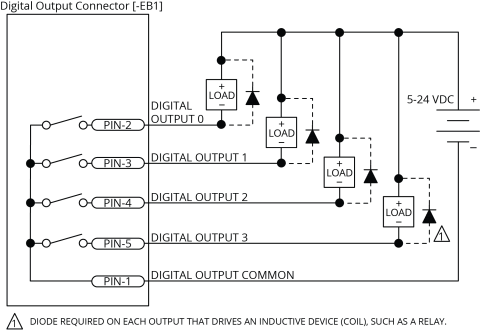

Figure 3-13:     Digital Outputs Connected in Current Sinking Mode [-EB1]
