DIN Rail Mounting

DIN Rail Mounting Procedure:

  1. Mount the DIN rail clip to the drive. The clip and #6-32 x 1/4 flat head screws are included in the HyperWire-DIN clip kit.
  2. Cut the DIN rail so that one complete mounting hole extends beyond the last component at each end.

  1. Secure the DIN Rail to the mounting surface with #10-32 screws spaced every six inches.
    NOTE: Do not install the DIN rail to the mounting surface with the components already attached.
  2. Install all components on to the DIN rail.

IMPORTANT: Refer to the Automation1 PS2 DIN Rail Power Supply hardware manual for more information.

Table 4-2:     Mounting Parts



Aerotech P/N

DIN Rail

EAM00914

DIN Rail Clip Kit

HyperWire-DIN

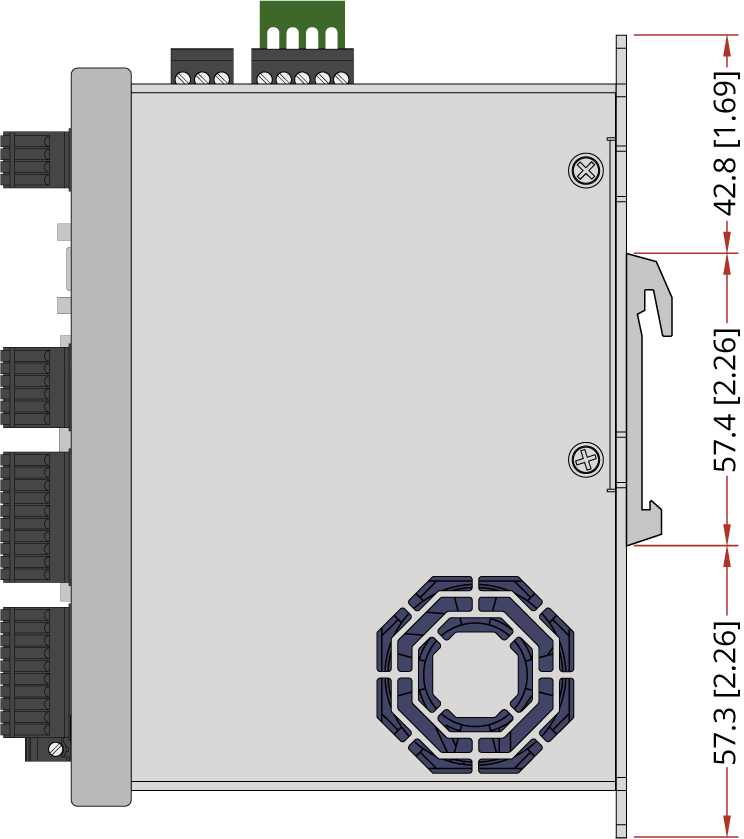

Figure 4-1:     Din Rail Clip Dimensions
