System Interconnection

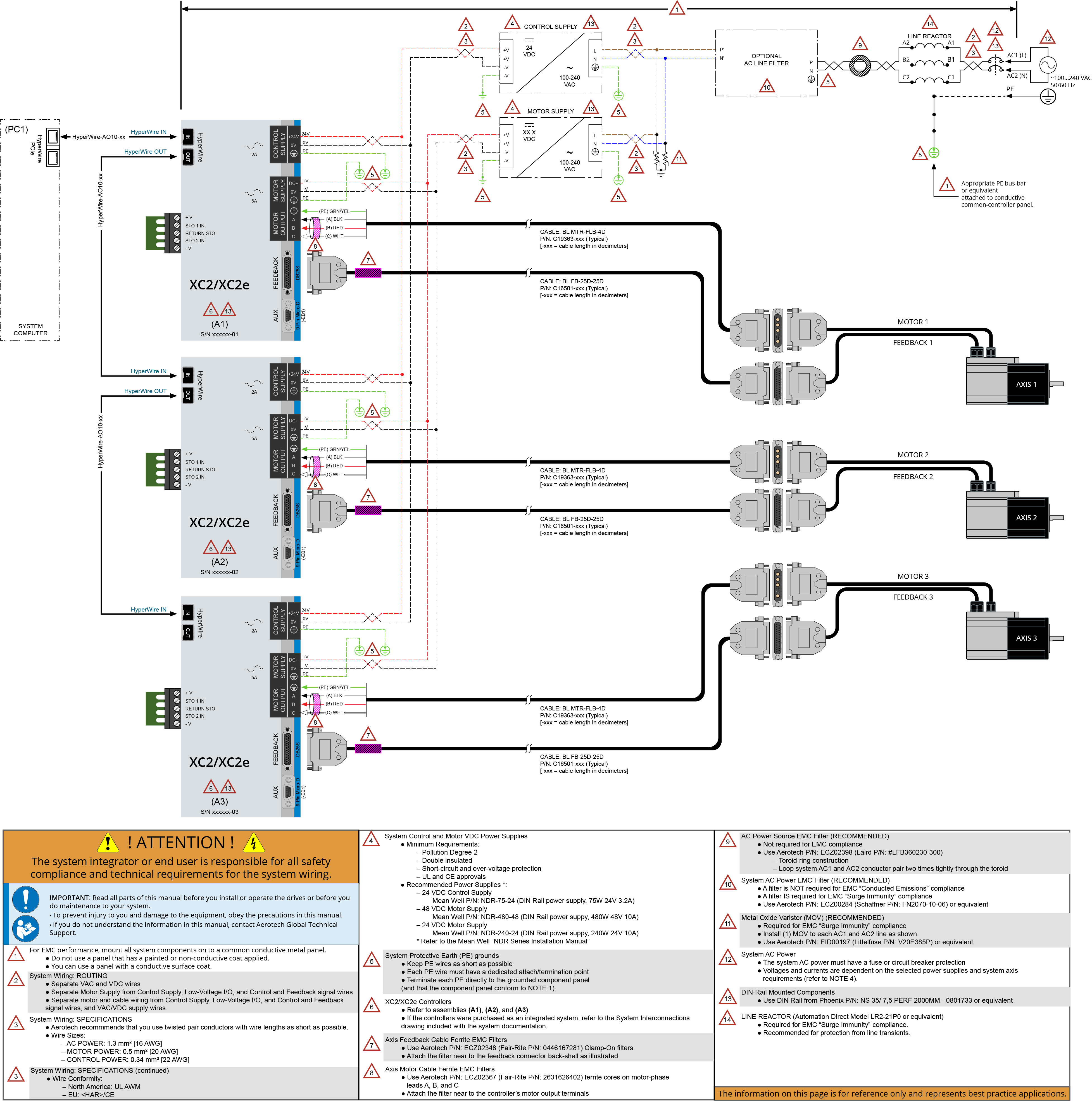

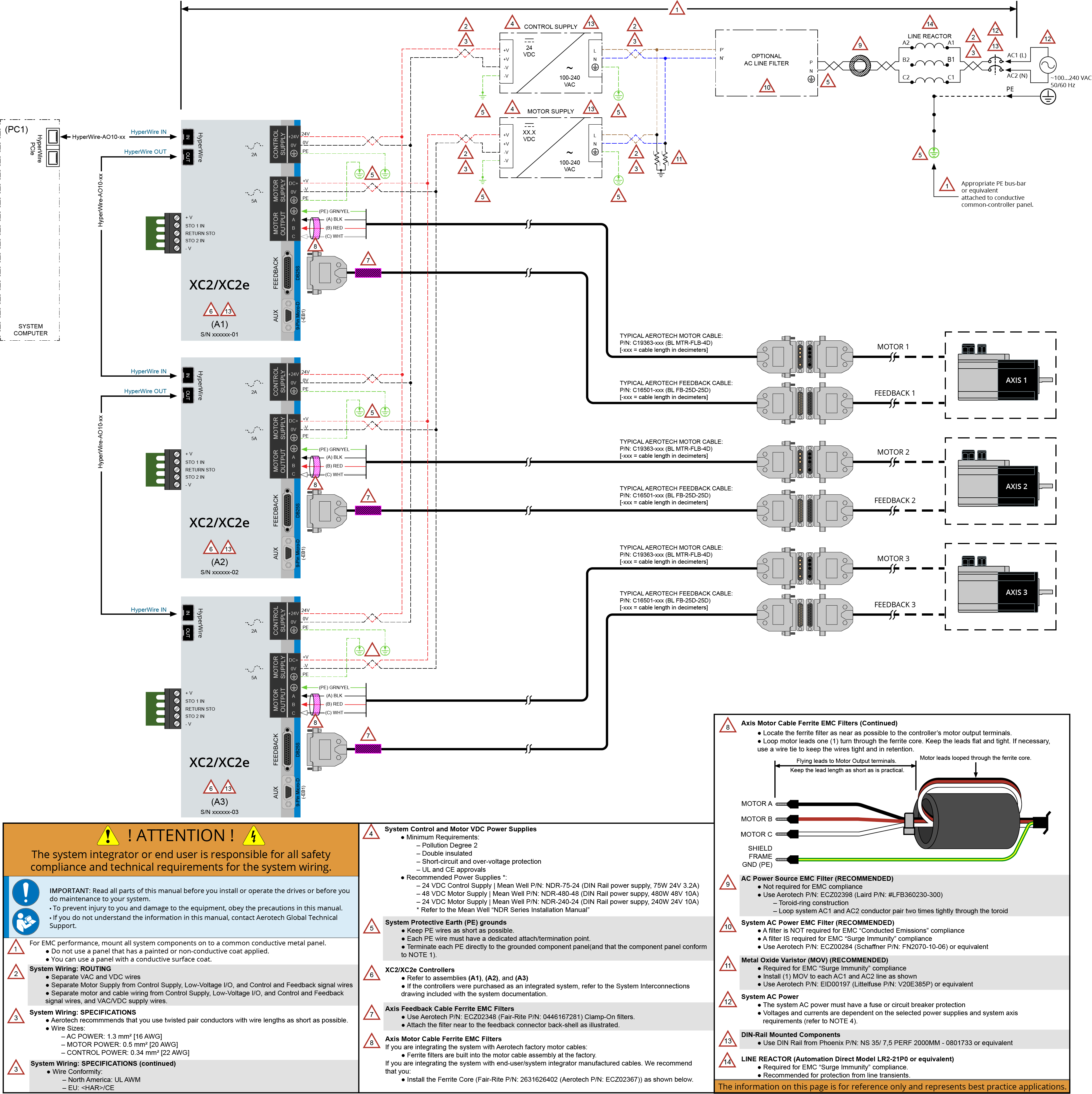

Figure 2-29:     Drive-Based System Wiring Drawing (Best Practice)

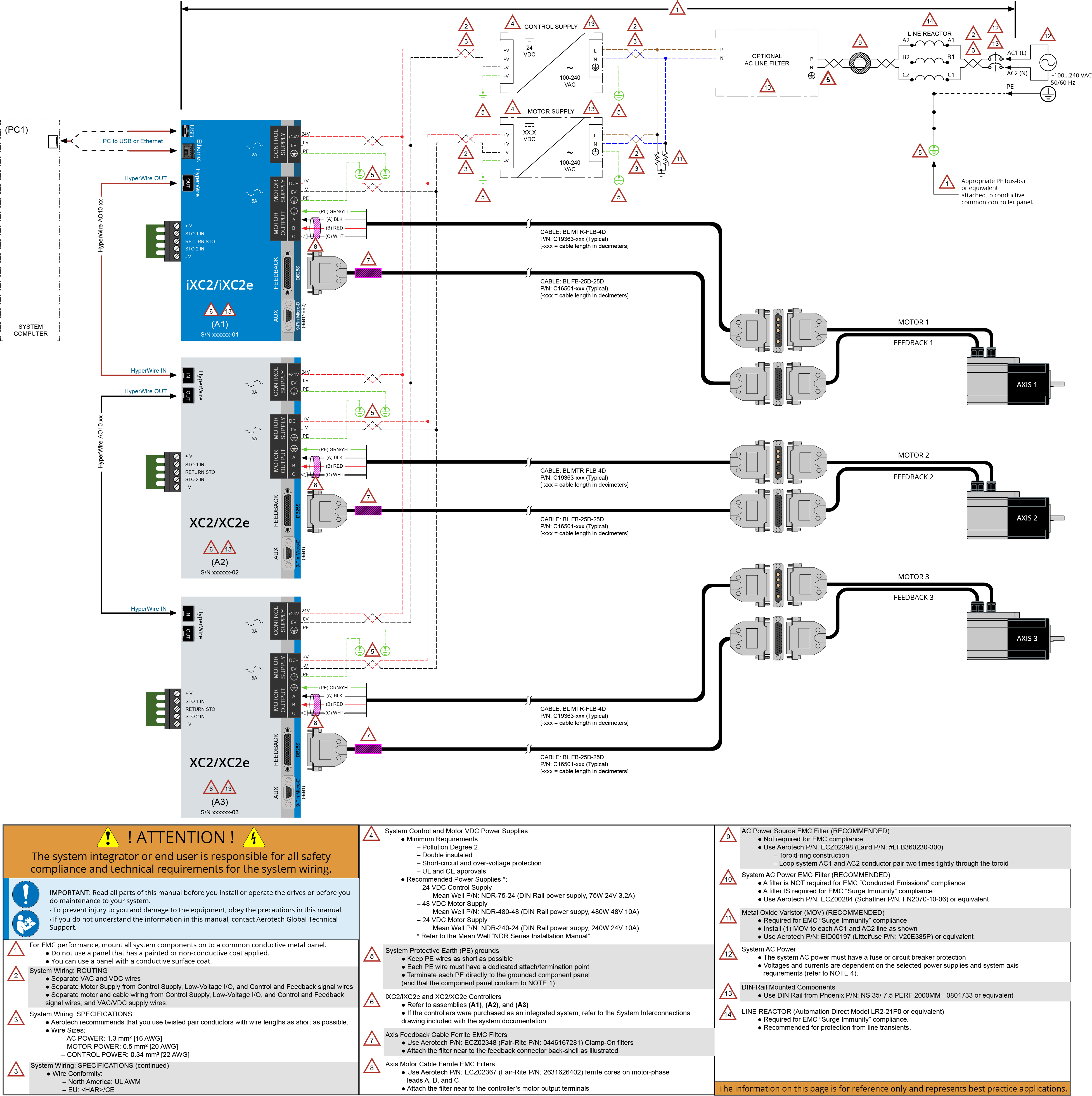

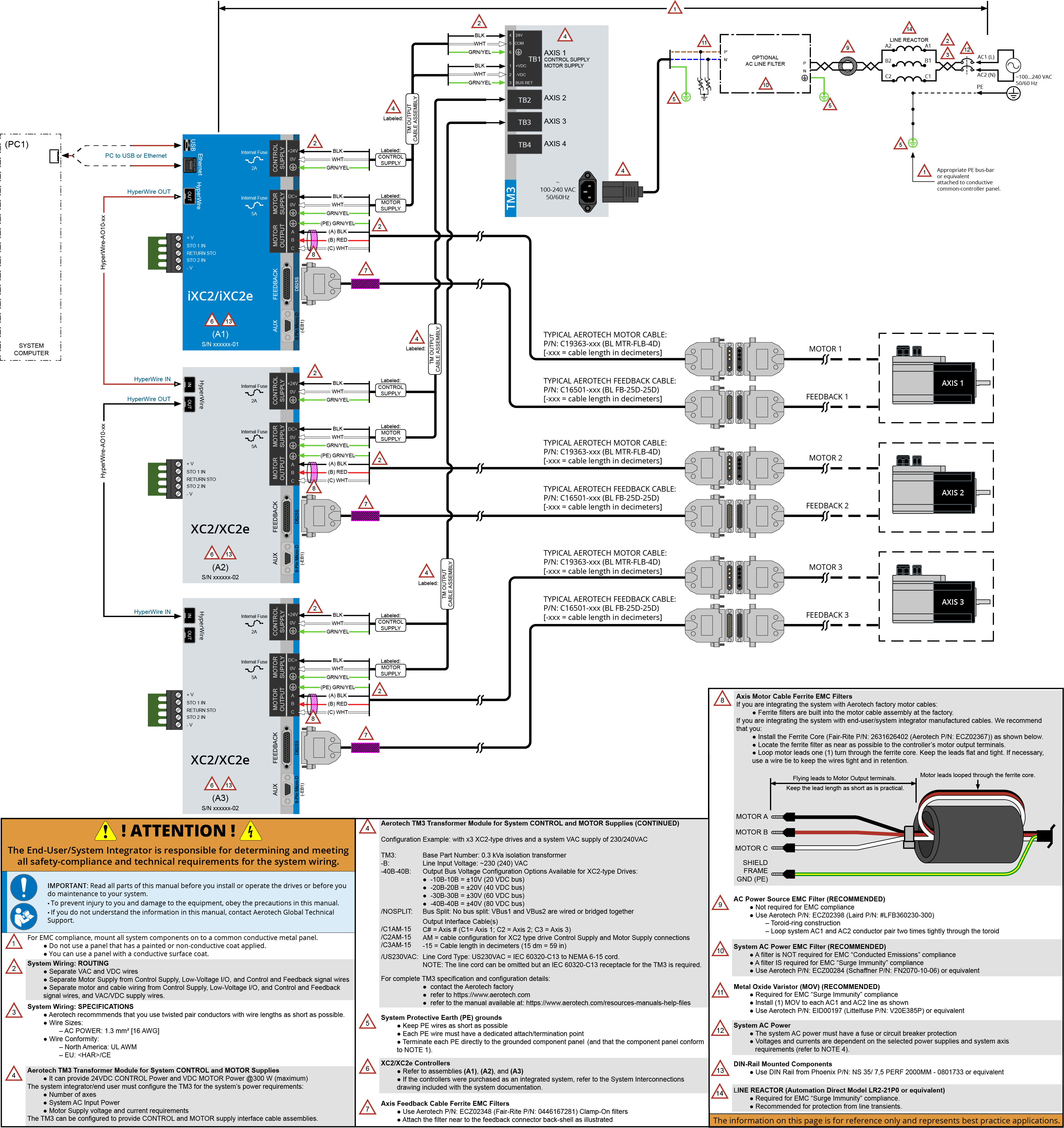

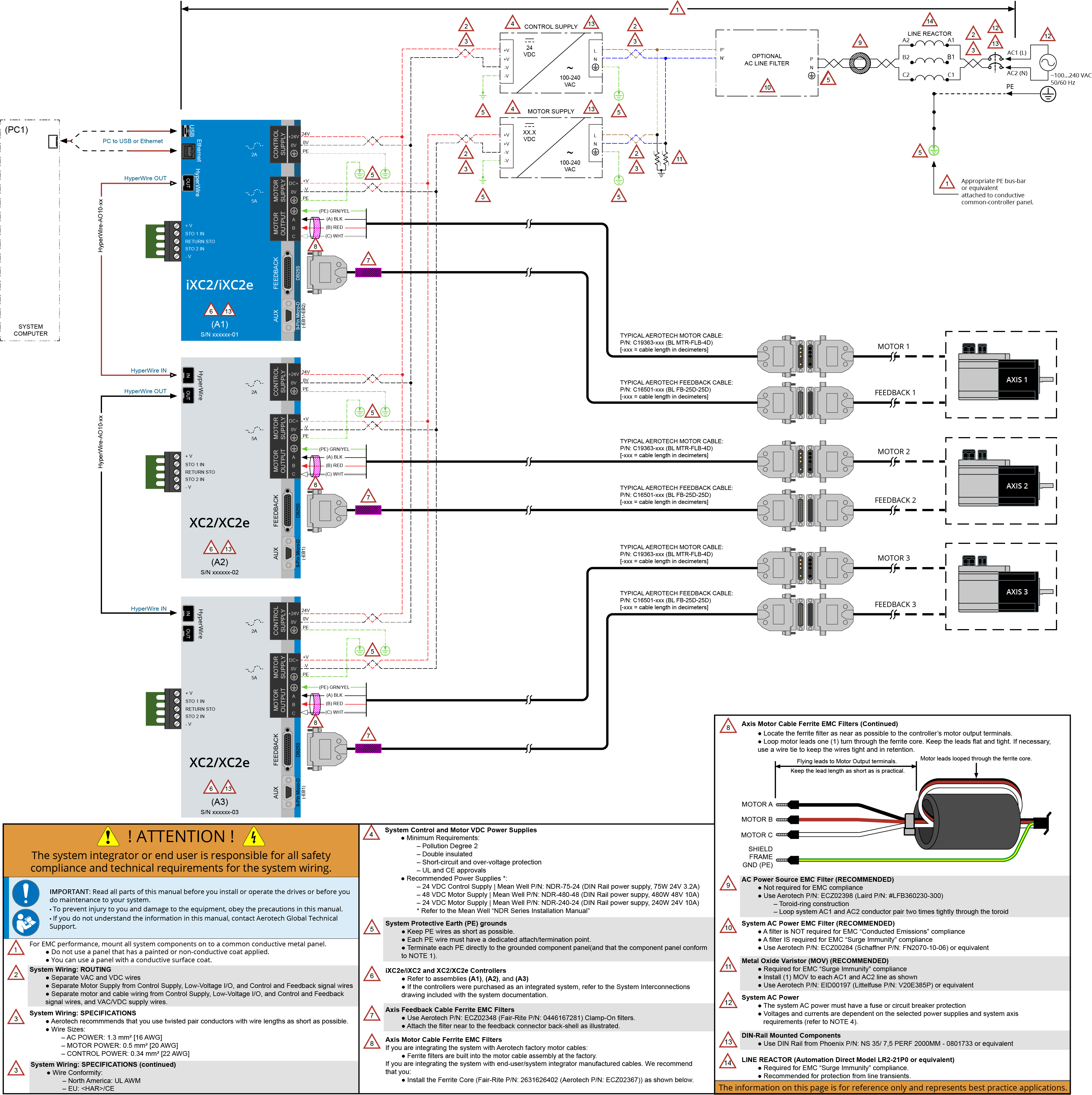

Figure 2-30:     PC-Based System Wiring Drawing (Best Practice)

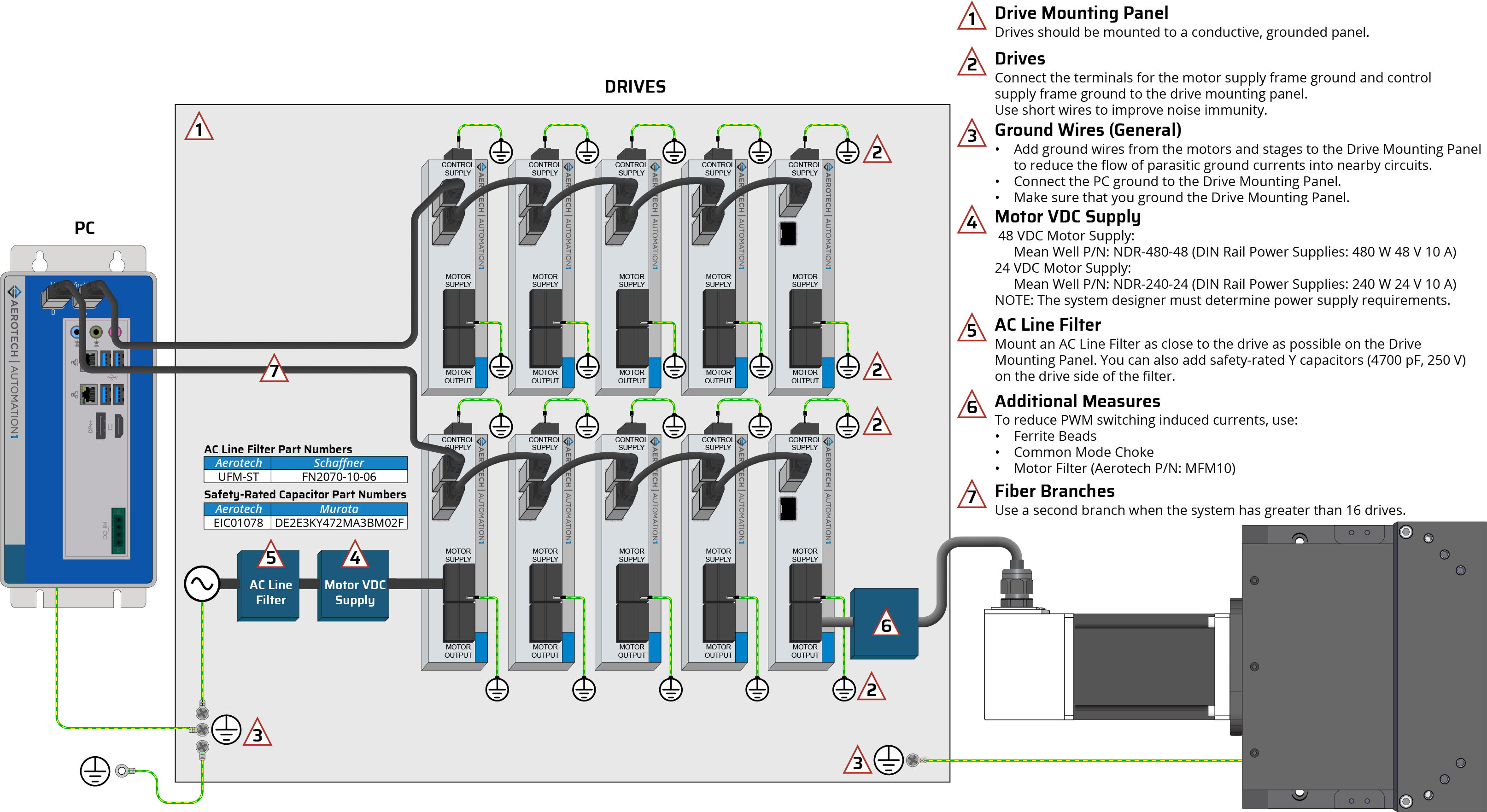

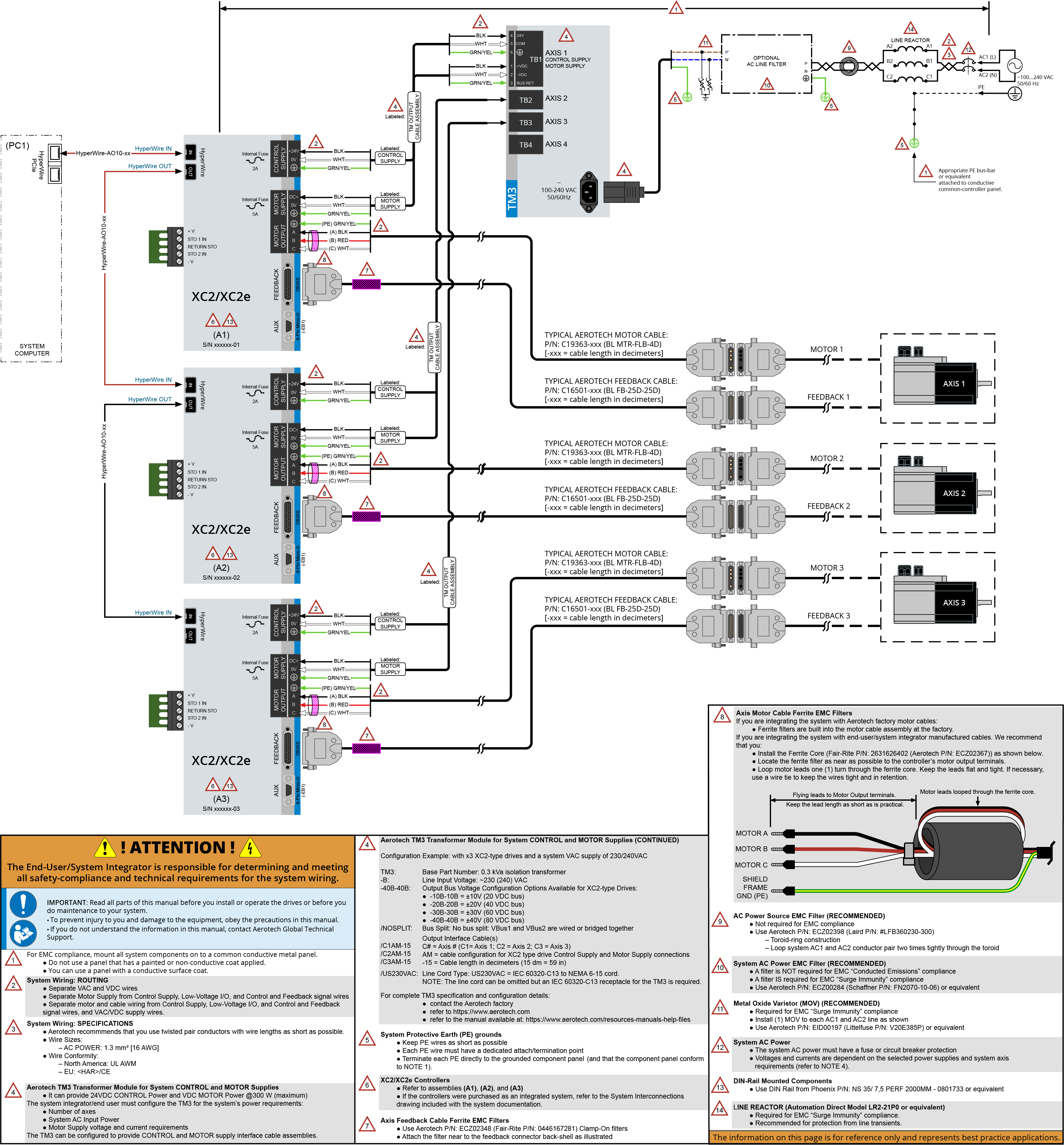

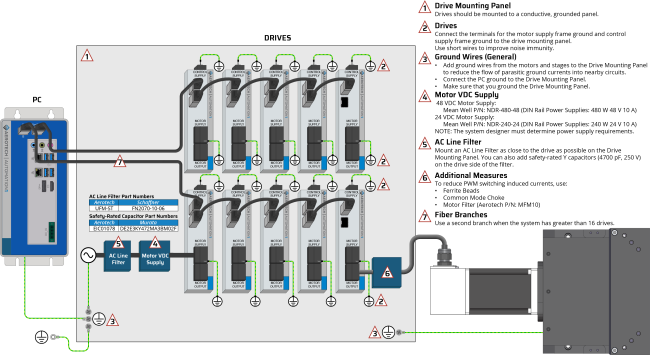

Figure 2-31:     Recommended System Connections for a Drive-Based Controller

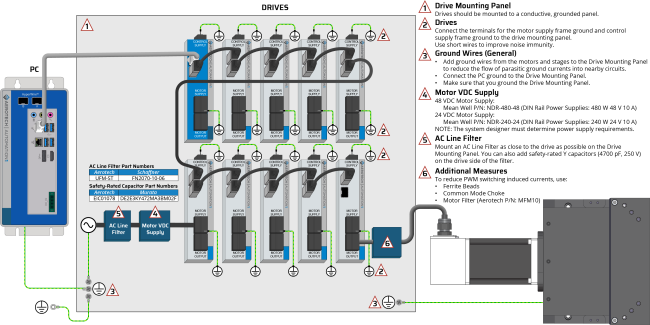

Figure 2-32:     Recommended System Connections for a PC-Based Controller
