Automation1 iPC Overview

IMPORTANT: All specifications and illustrations are for reference only and were complete and accurate as of the release of this manual. To find the newest information about this product, refer to www.aerotech.com.

Table 1-1:     Ordering Options

Example

Automation1-iPC-CC05-MDK01-SMC01-OS03-AB00-HMI03-AC1-LC1

Hardware
-CC05 Compact control cabinet iPC; i7 processor; SSD
-CC04 Compact control cabinet iPC; i5 processor; SSD
-R402 4U 19" rack mount iPC; i7 processor; SSD
-R103 1U 19" rack mount iPC; i7 processor; SSD
-DT01 Desktop tower IPC; i7 processor; SSD

Software

-MDK01 Automation1 MDK is installed (default).
-MDK00 No Automation1 MDK software is installed.
-SMC01 Automation1 iSMC is installed (default).
-SMC00 No Automation1 iSMC controller is installed.

Operating System (Required)

-OS03 Windows 10 64-bit operating system (default)

Motion Bus Hardware

-MB03 HyperWire motion bus through a PCIe interface card (default). Required with -SMC01.
-MB00 No motion bus interface card

Automation Bus Hardware

-AB00 No EtherCAT interface card or Ethernet expansion cards (default)
-AB01 Ethernet expansion card (can be used for PC Modbus connections)

HMI Package

-HMI00 No HMI package (default)
-HMI01 USB keyboard and mouse
-HMI02 USB keyboard with integral touch pad
-HMI03 24” LED monitor, USB keyboard, and mouse
-HMI04 24” LED monitor, USB keyboard with integral touch pad

AC Adapter

-AC0 No AC Adapter (default)
-AC1 AC Adapter for PC power

Line Cord

-LC0 No line cord (default)
-LC1 US 115 VAC line cord
-LC2 US 230 VAC line cord
-LC3 UK compatible line cord
-LC5 Israel compatible line cord
-LC6 India compatible line cord
-LC7 Australia compatible line cord

Specifications

IMPORTANT: PC specifications subject to change without notice. Please contact factory for most up to date information. Refer to your third-party motherboard documentation to determine your current specifications.

Table 1-2:     Automation Motion Server Specifications (Control Cabinet / Desktop PC)



-CC05

-CC04

-DT01

Description Control cabinet PC Control cabinet PC Desktop PC
Automation1 Version 1.0 and above
Processor Intel i7 Intel i5 Intel i7
RAM 16 GB
Operating System(1) Windows 10 IoT Enterprise LTSC
Hard Disk Space 256 GB SSD 256 GB SSD 1 TB SSD
USB 3.0 Connections 4
Input Power 24 VDC 24 VDC 100-240 V,
50-60 Hz
Display Connections

Display Port

HDMI

Display Port

HDMI

DVI x2 and VGA

PCI/PCIe Expansion Slots

N/A(2)

N/A(2)

1 x PCIe x 16

3 x PCIe x 4(3)

3 x PCI

DVD Drive

No No

Yes

Drive Interface

HyperWire

LAN

10/100/1000 Mbit
(Qty. 2)

Modbus Support

Yes (Ethernet)

EtherCAT Support

Future

Power Supply

N/A N/A 350 W

(1) To avoid machine disruption, Aerotech disables automatic updates on Windows PCs that are shipped from Aerotech. To customize your update settings, refer to Microsoft’s Windows documentation or Aerotech’s User Guide to Windows 10 Updates.

(2) No expansion slots available.

(3) Option -MB03 requires a PCIe x4 slot.

Table 1-3:     Automation Motion Server Specifications (Rack Mount PCs)



-R103

-R402

Description 1U rack mount 4U rack mount
Automation1 Version 1.0 and above 1.0 and above
Processor Intel i7
RAM 16 GB
Operating System(1) Windows 10 IoT Enterprise LTSC
Hard Disk Space 256 GB SSD 1 TB SSD
USB 3.0 Connections 4
Input Power 100-240 V, 50-60 Hz
Display Connections DVI x2 and VGA
PCI/PCIe Expansion Slots

1 x PCIe x4(3)

1 x PCIe x 16

3 x PCIe x 4(3)

3 x PCI

DVD Drive Yes
Drive Interface HyperWire
LAN 10/100/1000 Mbit (Qty. 2)
Modbus Support   Yes (Ethernet)
EtherCAT Support N/A Future
Power Supply 350 W 500 W

(1) To avoid machine disruption, Aerotech disables automatic updates on Windows PCs that are shipped from Aerotech. To customize your update settings, refer to Microsoft’s Windows documentation or Aerotech’s User Guide to Windows 10 Updates.

(2) No expansion slots available.

(3) Option -MB03 requires a PCIe x4 slot.

Remote Server Operation

Only one of the available Ethernet ports will be configured for use with the remote server. Refer to the figures below to determine which port you should use for each Automation1 iPC hardware configuration.

Figure 1-1:     -CC04/-CC05 Connector View (typical)

Figure 1-2:     -DT01 Connector View (typical)

Figure 1-3:     -R103 Connector View (typical)

Figure 1-4:     -R402 Connector View (typical)

Dimensions

IMPORTANT: Aerotech continually improves its product offerings; listed options may be superseded at any time. All drawings and illustrations are for reference only and were complete and accurate as of this manual’s release. Refer to www.aerotech.com for the most up-to-date information.

Figure 1-5:     Desktop Computer Dimensions (-DT01)

Figure 1-6:     Control Cabinet Dimensions (-CC04/-CC05)

Figure 1-7:     4U Rack Mount Chassis Dimensions (-R402)

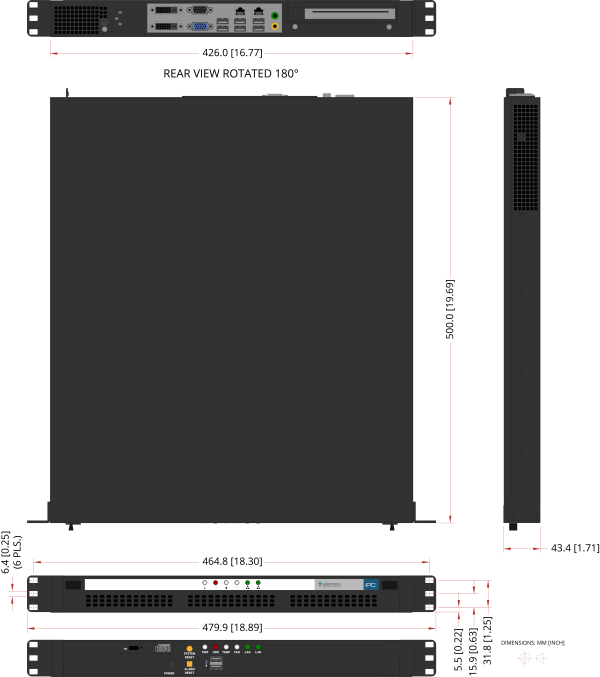

Figure 1-8:     1U Rack Mount Chassis Dimensions (-R103)

AC Power Setting

You can change the BIOS setting on the PC so that, in the event of a power failure, you will not need to access the PC to manually turn the PC back on. Use this item to select AC power state when power is re-applied after a power failure.

Table 1-4:     BIOS Settings

PC Type

BIOS Category

Settings

-CC04

-CC05

State after G3

Power On

-R103

Restore AC Power Loss

S0 State

-R402

Restore AC Power Loss

S0 State

-DT01

Restore AC Power Loss

S0 State

DVI Monitor Configuration (-R103, -R402, -DT01 PC Options)

To let the Windows OS operate without a monitor connected, both the AIMB-785 motherboard and the standard Advantech-provided BIOS are configured to report to the Windows OS that a VGA monitor is always connected as the default primary display. If you connect a single DVI monitor to one of the rack mount (-R103 or -R402) or desktop (-DT01) computers, the BIOS will continue to report to Windows that the VGA monitor is also connected. You will need to update the Windows Display settings to get the system to correctly identify the DVI monitor. Either duplicate the Windows desktop to both monitors or identify and set the DVI monitor as the primary display.

Environmental Specifications

Table 1-5:     Environmental Specifications

Ambient Temperature

Operating: 0° to 40°C

Storage: -30° to 85°C

Humidity

Non-condensing

The maximum relative humidity is 80% for temperatures that are less than 31°C and decreases linearly to 50% relative humidity at 40°C.

Operating Altitude

0 m to 2,000 m above sea level.
If you must operate this product above 2,000 m or below sea level, contact Aerotech, Inc.

Pollution

Pollution Degree 2
Typically only nonconductive pollution occurs.

Operation

Use only indoors
