Fuse Specifications

WARNING: Replace fuses only with the same type and value.

Table 4-4:     Control Board Fuse Specifications

Fuse Description Size

SCCR(1)

Aerotech P/N

Littelfuse P/N
F300(2) Control Power at +24 V Input 5 A S.B. 35 A EIF01076 0473005.MRT1L
F301 Motor Bus Supply at DC+ 10 A S.B. 1500 A

EIF01020

0215010.HXP

F200-1
F200-2
F200-3
F200-4
F200-5
F200-6

 Motor Bus Supply at axis (amplifier)

3.15 A S.B.

 35 A

EIF01080

39213150440

(1) Short circuit current rating

(2) F300 is soldered into the PCB and is not user replaceable.

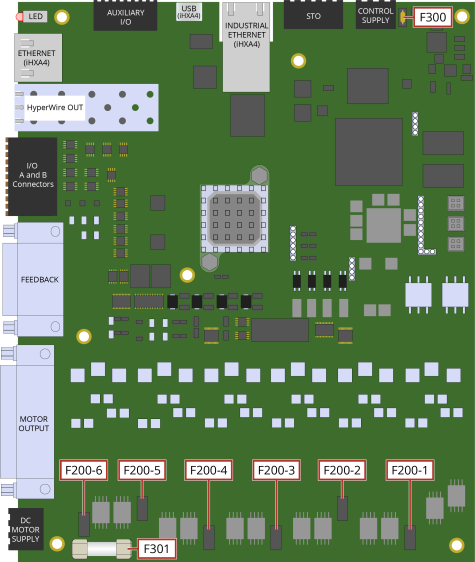

Figure 4-1:     Fuse Locations on the iHXA4/HXA4 Control Board
