Analog Inputs

To interface to a single-ended, non-differential voltage source, connect the signal common of the source to the negative input and connect the analog source signal to the positive input. A floating signal source must be referenced to the analog common. Refer to Analog Inputs Schematic.

Table 2-21:     Differential Analog Input Specifications

Specification	Value
(AI+) - (AI-)	+10 V to -10 V (1)
Resolution (bits)	16 bits
Input Impedance	50 kΩ
1. Signals outside of this range may damage the input

Table 2-22:     I/O Connector "A" Analog Inputs Pinout

Pin #	Label	Description	In/Out/Bi
5	AI3+	Analog Input 3+	Input
6	AI3-	Analog Input 3-	Input
7	AI4+	Analog Input 4+	Input
8	AI4-	Analog Input 4-	Input
9	AI5+	Analog Input 5+	Input
10	AI5-	Analog Input 5-	Input

Table 2-23:     I/O Connector "B" Analog Inputs Pinout

Pin #	Label	Description	In/Out/Bi
5	AI0+	Analog Input 0+	Input
6	AI0-	Analog Input 0-	Input
7	AI1+	Analog Input 1+	Input
8	AI1-	Analog Input 1-	Input
9	AI2+	Analog Input 2+	Input
10	AI2-	Analog Input 2-	Input

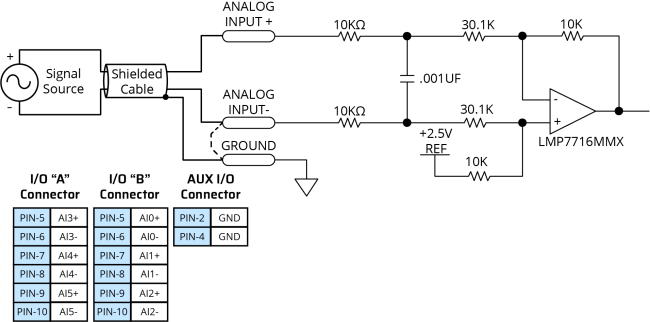

Figure 2-11:     Analog Inputs Schematic
